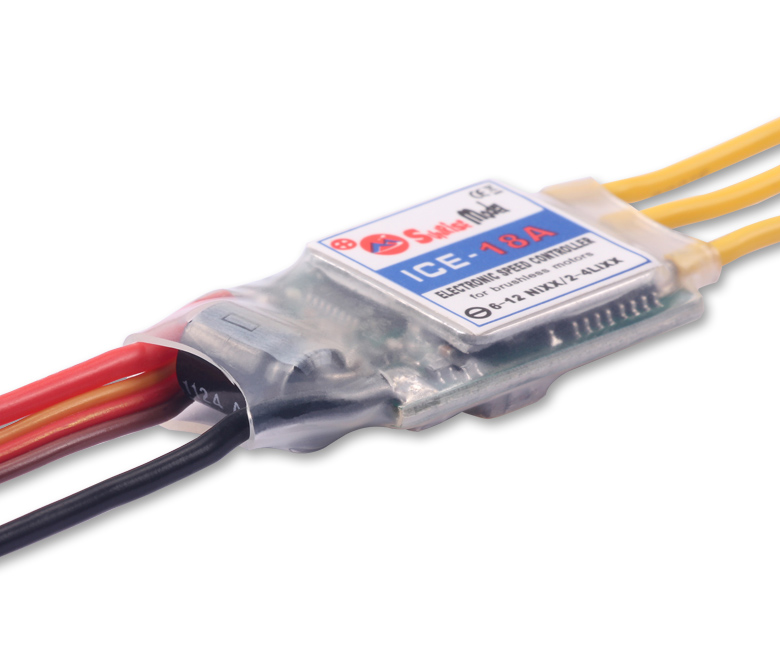

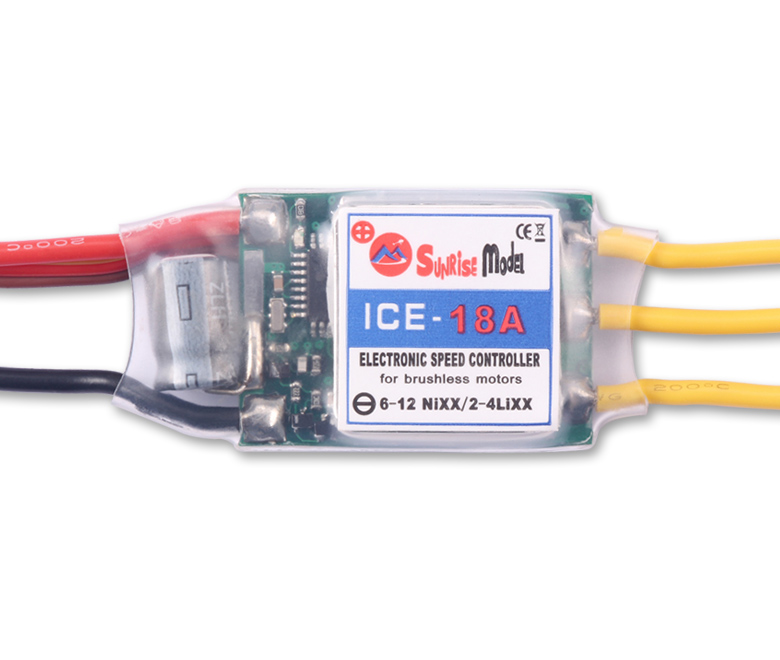

ICE

Model:                      ICE  18A SBEC

Constant Current:     18A

Max Current:             20A for 10 seconds

Input Voltage:            2 to 4 Li-XX, or 6-12 Ni-MH/Ni-Cd battery

BEC Output:              5.5V/4A

PWM:                         8-16 KHz

Max RPM:                  240,000rpm for 2 Poles Brushless Motor

PCB Size:                   34MM*24MM

Details:
* Compatible with a programming card to change and set parameters easily and conveniently
* Super fine and smooth touch of speed controlling, first-rate accurate linearity
* Soft Start-up mode and Constant RPM mode (Governor mode)
* adjustable F3A brake.
* 3 steps adjustable regular back EMF brake.
* High capability of anti-interference
* Low-voltage cut-off protection for per cell battery
* Under-voltage cutoff
* Under-voltage can be disabled
* Under-voltage with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
* Variable cutoff voltage / cell
* Slow down instead of cutoff
* Active freewheeling circuit
* LED status display
* Timing of motor ranges from 0° to 30°
* Blocked rotation protection
* Reversible rotation direction
* Over-temperature protection and Overload alarm
* Anti sparkling circuit: reduces connection sparkles(for HV ESC)
* Throttle signal lose protection. When the signal loses for 3 seconds, the power will automatically cut off.
* Safe power-on. The motor won’t start no matter which position the throttle stick is when battery connected
*This series ESC can be compatible with both helicopter and airplane.
